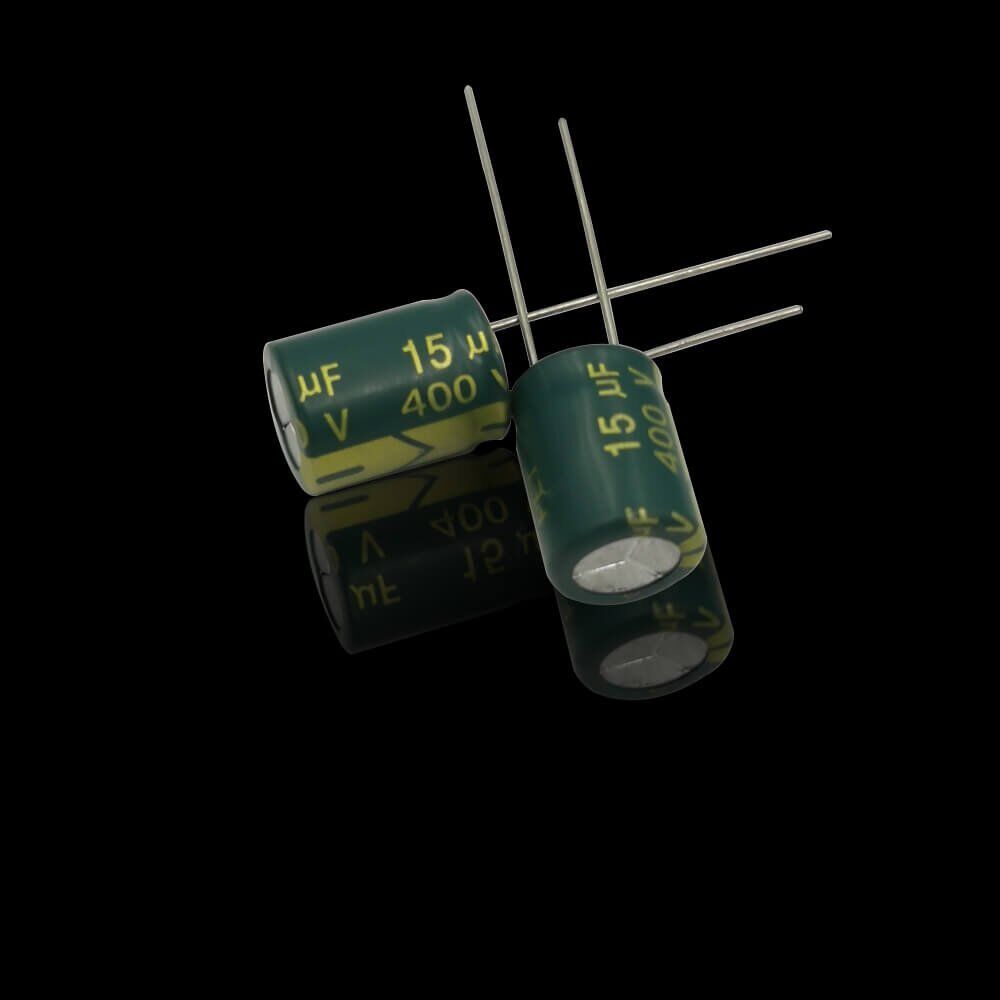

Miniature Aluminum Electrolytic Capacitors

The miniature type is suitable for use in the electronic circuit of high-density assembly of video recorder, remote controller, VCD, etc.

These series are used for communication equipment, switching power supply, industrial measuring instruments,
automotive electric products, etc.

Some of them have low impedance for high frequency, widely used in communication equipment, switching power supply, industrial measuring instruments, etc.

The items have long-life assurance, high ripple current at high frequency are quite suitable for electronic ballast, power supply.

Product Details:

Miniature Aluminum Electrolytic Capacitors
Miniature Type
SeriesFeaturesTemperature(℃)Voltage(V.DC)Capacitance(uF)Load LifeDownload
CKF5mm Length, +105℃-40~+1054~500.1~2202000Hrs
CLL5mm Length, Low Leakage Current-40~+1054~500.1~1002000Hrs
CNF5mm Length, Nonpolar-40~+1056.3~500.1~472000Hrs
CSS7/9mm Length, High C/V-40~+856.3~500.1~4702000Hrs
CKS7/9mm Length, +105℃-40~+1056.3~500.1~5602000Hrs
CRS7/9mm Length, Low Leakage Current-40~+1056.3~500.1~2202000Hrs
CNK7/9mm Length, Nonpolar-40~+1056.3~500.1~2202000Hrs
CZG5~9mm Length, +85℃, Low Impedance-40~+856.3~356.8~4702000Hrs
CZS5~9mm Length, +105℃, Low Impedance-40~+1056.3~356.8~4702000Hrs
CSKStandard -40~+856.3~4500.1~220002000Hrs
Standard TypeDownload
CTK+105℃,Standard -40~+1056.3~4500.1~330002000Hrs
CSR105℃High Temperature -40~+1056.3~4502.2~150003000Hrs
CSL+105℃-40~+1056.3~1000.1~100002000Hrs
CSHHigh ripple current-40~+1056.3~4500.47~220002000Hrs
CHK +105℃, Standard -55~+1056.3~4500.1~330002000Hrs
Nonpolar TypeDownload
CNPNonpolar-40~+856.3~1000.47~68002000Hrs
CNH +105℃ Nonpolar-40~+1056.3~1000.47~10002000Hrs
High Reliability TypeDownload
CTRX +105℃, Long Life Assurance-40~+10510~4502.2~47005000Hrs
CSB +105℃, Long Life Assurance-40~+10510~4503.3~330010000Hrs
CFA +105℃, Long Life for Ballast-25~+105160~4501~3306000Hrs
CFB +105℃, Long Life for Ballast-25~+105160~4501~3308000Hrs
Low Impedance/ESR TypeDownload
CGL +105℃, Low Impedance-40~+1056.3~4500.47~150002000Hrs
CGH +105℃, Low Impedance-40~+1056.3~4500.47~150003000Hrs~
CTZX +105℃, Low Impedance-40~+1056.3~4501~150005000Hrs~
CGM Ultra Low ESR and Long Life-40~+1056.3~5022~68003000Hrs~
CGRUltra Low ESR and Long life-40~+1056.3~10022~56004000Hrs~
CGF -55℃, Low Impedance-55~+1056.3~1000.47~150002000Hrs~
CGPUltra Low Impedance -40~+1056.3~16470~47002000Hrs
CBDHigh Temperature for +125℃-40~+12510~4500.47~10001000 Hrs~
CBPTV Bi-Polarized-40~+10525 50 631~472000Hrs
CPFPhoto Flash Use-25~+5533060~3005000Times
